Motion Control Products

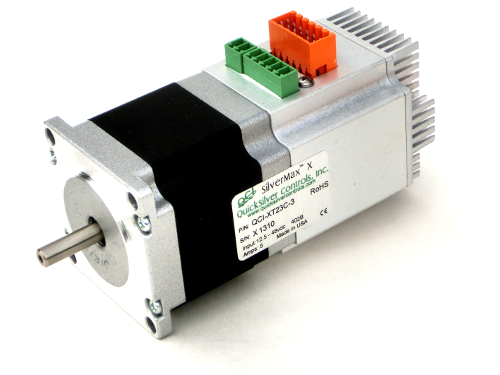

SilverMax™ 23 Frame X-Series Integrated Servo

The SilverMax X-Series is a fully integrated Hybrid Servo Motor with feedback, a Controller/Indexer, and a Digital Driver in a compact package. All communications and power are accessed through a single 19 pin M16 connector. The interface includes 7 I/O, all of which support both LVTTL and analog signals, and one of which also supports 0 to 10v analog. A processor back-up power input and a hardware drive enable are also included. Communication via CANopen and RS-485 serial, which may be operated simultaneously. The driver is rated to 6A continuous per phase. The system is designed for use at +12.5VDC to +48VDC.

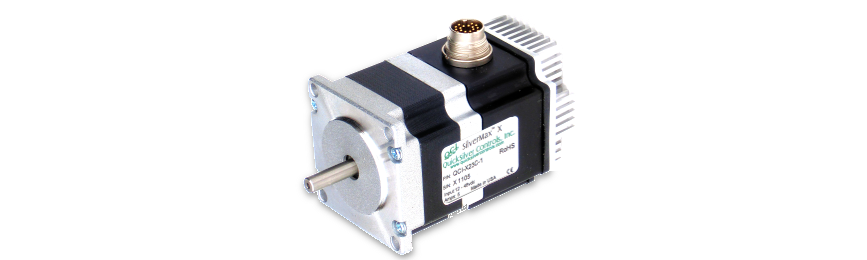

SilverMax QCI-X23C-1

Starting at $749.00

QCI-X23C-1 Features

  • Continuous Torque: 75 oz-in (0.53 Nm)
  • Peak Torque: 88 oz-in (0.62 Nm)
  • Maximum Current: 4.0 A
  • Maximum Speed: 4000 RPM
  • Encoder Resolution: 8000 counts/Rev

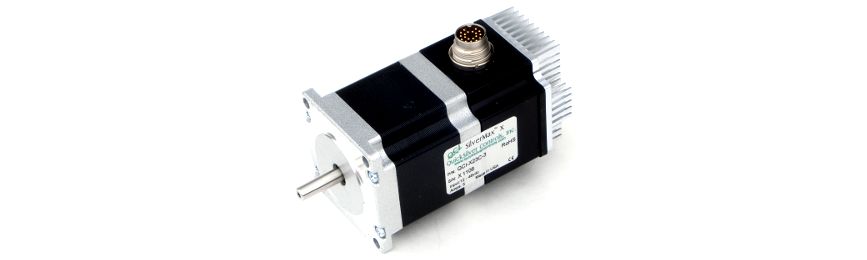

SilverMax QCI-X23C-3

Starting at $825.00

QCI-X23C-3 Features

  • Continuous Torque: 170 oz-in (1.2 Nm)
  • Peak Torque: 205 oz-in (1.45 Nm)
  • Maximum Current: 4.0 A
  • Maximum Speed: 3500 RPM
  • Encoder Resolution: 8000 counts/Rev

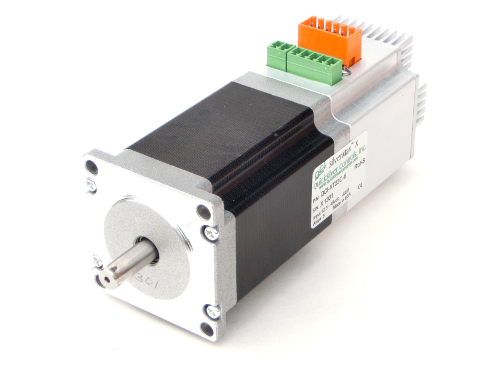

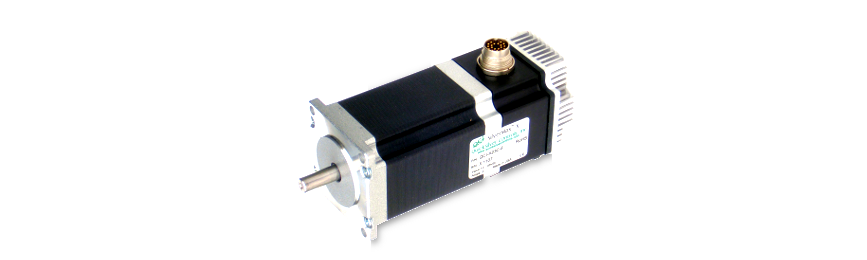

SilverMax QCI-X23C-6

Starting at $899.00

QCI-X23C-6 Features

  • Continuous Torque: 300 oz-in (2.11 Nm)
  • Peak Torque: 300 oz-in (2.11 Nm)
  • Maximum Current: 3.5 A
  • Maximum Speed: 2500 RPM
  • Encoder Resolution: 8000 counts/Rev

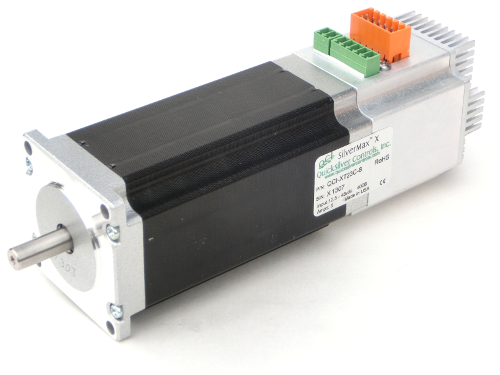

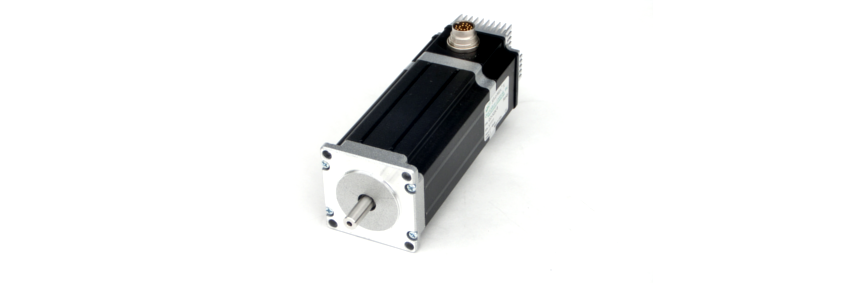

SilverMax QCI-X23C-8

Contact Us

QCI-X23C-8 Features

  • Continuous Torque: 380 oz-in (2.68 Nm)
  • Peak Torque: 500 oz-in (3.53 Nm)
  • Maximum Current: 4.0 A
  • Maximum Speed: 1000 RPM
  • Encoder Resolution: 8000 counts/Rev
  • Power
  • Input Voltage: +12.5VDC to +48VDC, regulated
  • Input Current: 5.5A Max
  • Communications
  • RS-485 multi-drop
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512®
  • CANopen®
  • Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
  • Inputs/Outputs
  • 7 Digital LVTTL Inputs or Outputs (0 to 3.3v)
  • All inputs have a light pull-up (~100k ohm to 3.3v)
  • All 7 I/O have an optional programmable pull-up/pull-down of 2.2 k ohm
  • All 7 I/O may be used as Analog Inputs: 0 to +3.3 VDC input signal range
  • IO7 has a secondary circuit to handle 0 to +10v input signal range
  • Hardware Drive Enable
  • Processor Power Backup
  • Single Cable: M16-19 connector

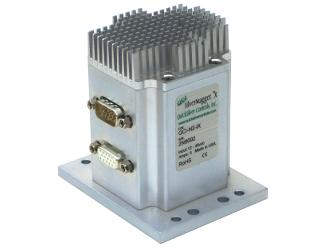

SilverNugget™ N2-IX Servo Controller and Driver

The SilverNugget N2-IX is a servo controller/driver for QCI’s line of NEMA 11, 17, 23, and 24 frame, high torque, direct drive, servo motors. The N2-IX Servo Controller/Driver is designed to operate QCI’s I-Grade motors through a single motor interface cable, which carries motor power and encoder feedback. This single cable solution allows for easy installations and simple cable routing.

Power, communications, and I/O are accessed through a single DB15 high density interface connector. The interface includes 7 I/O, all of which support both LVTTL and analog signals, and one of which also supports 0 to 10v analog. A hardware drive enable is available as a factory option. All 7 I/O also have soft configurable pull-up/pull-down resistors, which may also be disabled, for more flexibility.

SilverNugget N2-IX

Starting at $754.00

N2-IX Features

  • Closed-Frame (with heat sink)
  • DIN Mountable
  • Ideal for Standalone Systems
  • Power
  • Input Voltage: +12.5VDC to +48VDC, regulated
  • Input Current: 5.5A Max
  • Output Current: 5A RMS x 2 phases
  • Communications
  • RS-485
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512®
  • CANopen®
  • Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
  • Inputs/Outputs
  • 7 I/O, All 7 I/O support both LVTTL and analog signals (0 to 3.3v)
  • I/O#7: Includes circuitry for 0 to +10v analog input
  • I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-S1A)
  • Drive Enable Input Factory Option
  • Supports Secondary External Encoder
  • Output Internal Encoder Signals (Single-Ended or Differential)
  • SilverLode Multi-Function Interface Port (SMI): DB15HD (pin)
  • Motor-Encoder Interface Port: DB15HD (socket)
  • Single Motor Cable

SilverNugget™ N2-MX Servo Controller and Driver

The SilverNugget N2-MX is a highly compact motion controller and driver for driving high pole count micro step NEMA, 11, 17, 23, and 24 frame motors. With the addition of a high-resolution differential encoder and a bipolar micro step motor, the SilverNugget N2-MX provides a high performance servo positioning and rotary system. The SilverNugget has two integrated cables for interfacing with the primary encoder as well as the micro step motor. Once connected, the QuickControl software will guide a user through the SilverNugget encoder alignment and configuration process.

SilverNugget N2-MX is specifically designed to drive 100 poles, 1.8° step motors. To best utilize the capabilities of the SilverNugget, select a motor that has been optimized for micro stepping.

Power, communications, and I/O are accessed through a single DB15 high density interface connector. The interface includes 7 I/O, all of which support both LVTTL and analog signals, and one of which also supports 0 to 10v analog. A hardware drive enable is available as a factory option (Special order). All 7 I/O also have soft configurable pull-up/pull-down resistors, which may also be disabled, for more flexibility.

SilverNugget N2-MX-BB01

Starting at $855.00

N2-MX-BB01 Features

  • Closed-Frame (with heat sink)
  • DIN Mountable
  • 1 ft. Motor/Encoder Cables

SilverNugget N2-MX-BB04

Starting at $855.00

N2-MX-BB04 Features

  • Closed-Frame (with heat sink)
  • DIN Mountable
  • 4 ft. Motor/Encoder Cables
  • Compatible Motors
  • Support 3rd Party Stepper Motors (open-loop or closed-loop)
  • Power
  • Input Voltage: +12.5VDC to +48VDC, regulated
  • Input Current: 5.5A Max
  • Output Current: 5A RMS x 2 phases
  • Communications
  • RS-485
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512®
  • CANopen®
  • Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
  • Inputs/Outputs
  • 7 I/O, All 7 I/O support both LVTTL and analog signals (0 to 3.3v)
  • I/O#7: Includes circuitry for 0 to +10v analog input
  • I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-S1A)
  • Drive Enable Input Factory Option
  • Supports Secondary External Encoder
  • Output Internal Encoder Signals (Single-Ended or Differential)
  • SilverLode Multi-Function Interface Port (SMI): DB15HD (pin)

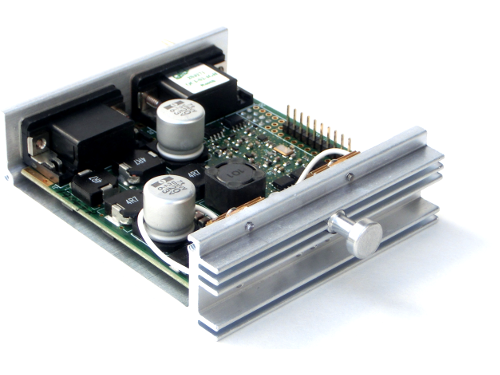

SilverSterling™ S2-IG Servo Controller and Driver

The SilverSterling S2-IG is an OEM servo controller/driver for QuickSilver Controls’ line of I-Grade NEMA 11, 17, 23, and 24 frame, but is also designed to drive 3rd party DC brushed and voice coil motors. The SilverSterling features a 15 pin interface connector, SilverSterling Interface Port (SIP), including 4 I/O, CAN , RS-485, and system power input (12 to 48v).

The SilverSterling S2 is an inexpensive way to add servo control to an RS-485 serial capable device such as a PC, PLC or HMI. With ASCII, binary, and Modbus protocols, serial communications is a snap.

SilverSterling S2-IG-01

Starting at $370.00

S2-IG-01 Features

  • Board Only (requires user to properly ground and heat sink motor driver)
  • Designed to Minimize Space
  • Popular with OEM’s

SilverSterling S2-IG

Starting at $411.00

S2-IG Features

  • Closed-Frame
  • Enclosure doubles as heat sink
  • Ideal for Standalone Systems
  • Mezzanine Board Option

SilverSterling S2-X2-IG

Starting at $853.00

S2-X2-IG Features

  • Closed-Frame
  • Two independent controllers in enclosure
  • Enclosure doubles as heat sink
  • Designed to maximize space
  • Compatible Motors
  • Power
  • Input Voltage: +12 VDC to +48VDC, regulated
  • Input Current: 4.5A Max
  • Output Current: 3.5A RMS x 2 phases, 5A Peak; (6A Peak for DC motor); with adequate heat sink
  • Built-in regenerative voltage clamp and power resistor
  • Communications
  • RS-485
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512®
  • CANopen®
  • Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
  • Inputs/Outputs
  • 4 Digital LVTTL Inputs or Outputs (0 to 3.3v)
  • I/O#3 and I/O#4: Configurable as Analog Inputs (0 to 3.3V)
  • I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-S1A)
  • I/O#1: Capture PWM Signal for RC Control
  • SilverSterling Interface Port (SIP): DB15HD (pin)
  • Motor-Encoder Interface Port: DB15HD (socket)
  • Single Motor Cable

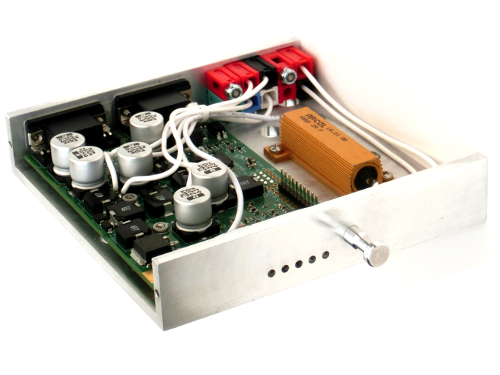

SilverSterling™ S3-IG Servo Controller and Driver

The SilverSterling S3 is an OEM servo controller/driver for QuickSilver Controls’ line of I-Grade NEMA 34 frame motors and is also designed to drive 3rd party DC brushed, 3rd party voice coil, and 3rd party 3 phase brushless motors. The SilverSterling features a 15 pin interface connector, SilverSterling Interface Port (SIP), including 4 I/O, CAN , RS-485, and system power input (12 to 48v).

The SilverSterling S3 is an inexpensive way to add servo control to an RS-485 serial capable device such as a PC, PLC or HMI. With ASCII, binary, and Modbus protocols, serial communications is a snap.

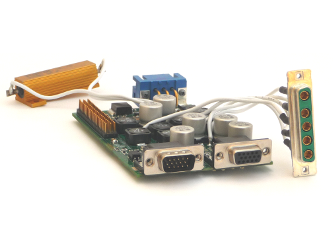

SilverSterling S3-IG-01

Starting at $771.00

S3-IG-01 Features

  • Board Only (requires user to properly ground and heat sink motor driver)
  • Designed to Minimize Space
  • Popular with OEM’s

SilverSterling S3-IG

Starting at $850.00

S3-IG Features

  • Closed-Frame
  • Enclosure doubles as heat sink
  • Ideal for Standalone Systems
  • Mezzanine Board Option
  • Compatible Motors
  • QCI’s NEMA 34 I-Grade Motors
  • 3rd Party Voice Coils 20A peak)
  • 3rd Party Brushed DC motors (20A peak)
  • 3rd Party 3 Phase Brushless Motors (20A peak)
  • Power
  • Input Voltage: +12 VDC to +48VDC, regulated
  • Input Current: 20A Max
  • Output Current: 10A RMS x 2 phases, 20 Amp peak; 20A Max for DC motors (using both phases in parallel); with adequate heat sink
  • Built-in regenerative voltage clamp and power resistor
  • Communications
  • RS-485
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512®
  • CANopen®
  • Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
  • Inputs/Outputs
  • 4 Digital LVTTL Inputs or Outputs (0 to 3.3v)
  • I/O#3 and I/O#4: Configurable as Analog Inputs (0 to 3.3V)
  • I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-S1A)
  • I/O#1: Capture PWM Signal for RC Control
  • Isolated Drive Enable Input
  • SilverSterling Interface Port (SIP): DB15HD (pin)
  • Encoder Interface Port: DB15HD (socket)
  • Motor Power Interface: DB-5W5 (socket)

SilverDust™ D2-IG Servo Controller and Driver

The SilverDust D2 is an OEM servo controller/driver for QuickSilver Controls’ line of I-Grade NEMA 11, 17, 23, and 24 frame motors. The SilverDust D2 features a 15 pin interface connector, SilverLode Multiple Interface (SMI) Port, including 7 TTL IO, RS-232/RS-485, and system power input.

SilverDust D2-IG-01

Starting at $500.00

D2-IG-01 Features

  • Board Only
  • Drive Enable Input
  • Designed to Minimize Space
  • CANopen Factory Option
  • Popular with OEM’s

SilverDust D2-IG

Starting at $524.00

D2-IG Features

  • Open-Frame
  • DIN Mountable
  • Drive Enable Input
  • CANopen Factory Option
  • Popular with OEM’s

SilverDust D2-IGF

Starting at $605.00

D2-IGF Features

  • Closed-Frame (enclosure doubles as heat sink)
  • DIN Mountable (use QCI-DIN1)
  • Includes Processor Switch
  • Ideal for Standalone Systems

SilverDust D2-IGK

Starting at $638.00

D2-IGK Features

  • Closed-Frame (enclosure doubles as heat sink)
  • DIN Mountable (use QCI-DIN1)
  • Includes Processor Switch
  • CANopen
  • Ideal CANopen "slave" axis
  • Use QCI-BO-K Breakout

SilverDust D2-IGB

Starting at $844.00

D2-IGB Features

  • Closed-Frame (enclosure doubles as heat sink)
  • DIN Mountable (use QCI-DIN2)
  • Includes Processor Switch
  • CANopen
  • Drive Enable Input
  • 16 additional 24V I/Os
  • Dedicated Encoder In/Out Terminials
  • Ideal for Multi-Axis Applications

SilverDust D2-IG8

Starting at $844.00

D2-IG8 Features

  • Closed-Frame (enclosure doubles as heat sink)
  • DIN Mountable (use QCI-DIN1)
  • Includes Processor Switch
  • CANopen
  • Drive Enable Input
  • 8 additional 24V I/Os
  • Pluggable Terminials Blocks
  • Ethernet Option
  • Ideal for Multi-Axis Applications
  • Power
  • Input Voltage: +12 VDC to +48VDC, regulated
  • Input Current: 4A Max
  • Output Current: 3.5A RMS x 2 phases, 4.5A Peak; with adequate heat sink
  • Built-in regenerative voltage clamp and power resistor
  • Communications
  • RS232/RS-485 (software configurable)
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512® Factory Option
  • CANopen® Factory Option
  • Baud Rates: 2400, 4800, 9600, 19.2k, 28.8k, 57.6k, 115.2k or 230.4k (250k only for DMX512)
  • Inputs/Outputs
  • 7 Digital LVTTL Inputs or Outputs (0 to 3.3v)
  • I/O# 4, 5, 6, 7: Configurable as Analog Inputs (0 to 3.3V)
  • I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-B1A)
  • I/O#1: Capture PWM Signal for RC Control
  • SilverLode Multi-Function Interface Port (SMI): DB15HD (pin)
  • Motor-Encoder Interface Port: DB15HD (socket)
  • Single Motor Cable

SilverDust™ D2-MG Servo Controller and Driver

The SilverDust D2-MG is QuickSilver Controls’ smallest servo controller. The SilverDust D2-MG is specifically designed to drive 100 poles, 1.8° step motors. To best utilize the capabilities of the D2-MG, select a motor that has been optimized for micro stepping. Its open frame design and motor winding breakout is ideal for OEMs driving a 3rd party stepper motors in either open loop (no encoder) or closed loop. The D2-MG comes standard with an SMI port, including 7 TTL IO, RS-232/RS-485, and system power input.

SilverDust D2-MG-01

Starting at $499.00

D2-MG-01 Features

  • Board Only
  • Designed to Minimize Space
  • CANopen Factory Option
  • Popular with OEM’s

SilverDust D2-MG

Starting at $525.00

D2-MG Features

  • Open-Frame
  • DIN Mountable
  • CANopen Factory Option
  • Popular with OEM’s
  • Compatible Motors
  • Support 3rd Party Stepper Motors (open-loop or closed-loop)
  • Power
  • Input Voltage: +12 VDC to +48VDC, regulated
  • Input Current: 4A Max
  • Output Current: 3.5A RMS x 2 phases, 4.5A Peak; with adequate heat sink
  • Communications
  • RS232/RS-485 (software configurable)
  • 8-Bit ASCII
  • 9-Bit Binary
  • Modbus® RTU
  • DMX-512® Factory Option
  • CANopen® Factory Option
  • Inputs/Outputs
  • 7 Digital LVTTL Inputs or Outputs (0 to 3.3v)
  • I/O# 4, 5, 6, 7: Configurable as Analog Inputs (0 to 3.3V)
  • I/O#2: Configurable as a +5v PMW Output (Use With QCI-BO-B1A)
  • I/O#1: Capture PWM Signal for RC Control
  • SilverLode Multi-Function Interface Port (SMI): DB15HD (pin)
  • Supports Single-ended and Differential Encoders
  • Primary Encoder Resolution
  • 500 Lines = 2000 counts/revolution (minimum recommended resolution)
  • 1000 Lines = 4000 counts/revolution
  • 2000 Lines = 8000 counts/revolution
  • 4000 Lines = 16000 counts/revolution

NEMA 11 M-Grade Servo Motor with Encoder

The NEMA 11 motor is the smallest frame motor we offer. The motor includes encoder feedback with a resolution of 4000 counts/revolution.

QCI-M11-1-J

Starting at $271.00

QCI-M11-1-J Specifications

  • Continuous Torque: 9 oz-in
  • Peak Torque: 11 oz-in
  • Maximum Current: 1.3 A
  • Maximum Speed: 4000 RPM
  • Encoder Resolution: 4000 counts/Rev
  • Compatible Controllers

NEMA 17 I-Grade Servo Motor with Encoder

The NEMA 17 motor produces up to 57 oz-in of torque. The motor includes encoder feedback with a resolution of 8000 counts/revolution. Available in IP50 and IP65.

QCI-A17-1

Starting at $349.00

QCI-A17-1 Specifications

  • Continuous Torque: 21 oz-in
  • Peak Torque: 29 oz-in
  • Maximum Current: 1.3 A
  • Maximum Speed: 2500 RPM
  • Encoder Resolution: 8000 counts/Rev

QCI-A17H-3

Starting at $359.00

QCI-A17H-3 Specifications

  • Continuous Torque: 43 oz-in
  • Peak Torque: 57 oz-in
  • Maximum Current: 4.0 A
  • Maximum Speed: 4000 RPM
  • Encoder Resolution: 8000 counts/Rev

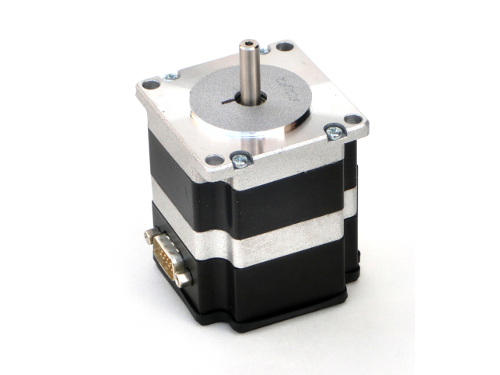

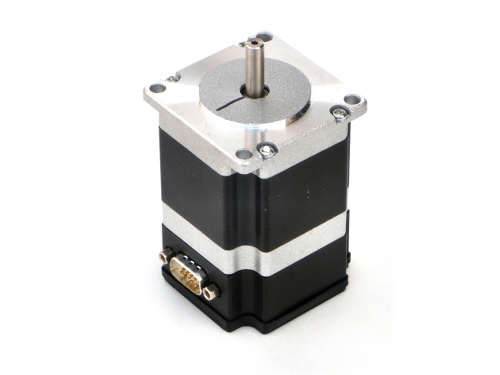

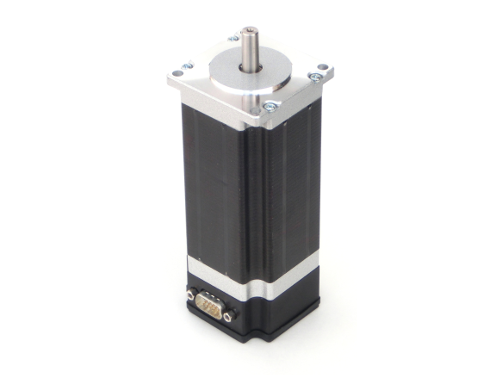

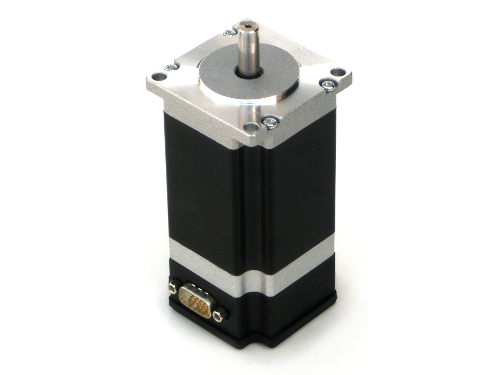

NEMA 23 I-Grade Servo Motor with Encoder

The NEMA 23 motor produces up to 240 oz-in of torque. The motor includes encoder feedback with a resolution of 8000 counts/revolution. Available in IP50 and IP65.

QCI-A23L-1

Starting at $298.00

QCI-A23L-1 Specifications

  • Continuous Torque: 40 oz-in
  • Peak Torque: 58 oz-in
  • Maximum Current: 4.0 A
  • Maximum Speed: 4000 RPM
  • Encoder Resolution: 8000 counts/Rev

QCI-A23CK-3

Starting at $308.00

QCI-A23CK-3 Specifications

  • Continuous Torque: 145 oz-in
  • Peak Torque: 185 oz-in
  • Maximum Current: 3.2 A
  • Maximum Speed: 3000 RPM
  • Encoder Resolution: 8000 counts/Rev

QCI-A23L-3

Starting at $329.00

QCI-A23L-3 Specifications

  • Continuous Torque: 84 oz-in
  • Peak Torque: 122 oz-in
  • Maximum Current: 3.5 A
  • Maximum Speed: 4000 RPM
  • Encoder Resolution: 8000 counts/Rev

QCI-A23H-5

Starting at $411.00

QCI-A23H-5 Specifications

  • Continuous Torque: 190 oz-in
  • Peak Torque: 240 oz-in
  • Maximum Current: 4.0 A
  • Maximum Speed: 4000 RPM
  • Encoder Resolution: 8000 counts/Rev

NEMA 23 Mosolver™ with built-in feedback sensor

The Mosolver is an innovative servo motion actuator which infuses a position feedback sensor into the very structure of a high pole count AC motor. This eliminates the need for costly encoder and resolvers. By combining the motor and resolver into a single package, the Mosolver enables a compact, inexpensive and robust closed-loop motion control. Visit the Mosolver website for more information.

QCI-MV23L-1

Starting at $206.00

QCI-MV23L-1 Specifications

  • Continuous Torque: 40 oz-in
  • Peak Torque: N/A
  • Maximum Current: 2.5 A
  • Maximum Speed: 3000 RPM
  • Encoder Resolution: 32000 counts/Rev
  • Compatible Controllers

NEMA 24 I-Grade Servo Motor with Encoder

The NEMA 24 motor produces up to 330 oz-in of torque. The motor includes encoder feedback with a resolution of 8000 counts/rev. The 24 frame motor has a slightly larger cross section and a heavier shaft, but has the same mounting holes and pilot diameter as a NEMA 23 motor, for easy mounting. The 24 frame motor is designed to have a significant torque advantage over standard 23 frame motors due to the added rotor radius available. Available in IP50 & IP65.

QCI-A24P-6

Starting at $462.00

QCI-A24P-6 Specifications

  • Continuous Torque: 330 oz-in
  • Peak Torque: N/A
  • Maximum Current: 3.5 A
  • Maximum Speed: 1000 RPM
  • Encoder Resolution: 8000 counts/Rev
  • Compatible Controllers

NEMA 34 I-Grade Servo Motor with Encoder

The NEMA 34 motor is the largest frame motor we offer. Several motor stack sizes are available with torque output up to 3200 oz-in. The motor includes encoder feedback with a resolution of 16,000 counts/revolution. All motors availble in IP50, most motor sizes are available in IP65.

QCI-A34HK-1

Starting at $489.00

QCI-A34HK-1 Specifications

  • Continuous Torque: 700 oz-in
  • Peak Torque: N/A
  • Maximum Current: 7.8 A
  • Maximum Speed: 2000 RPM
  • Encoder Resolution: 16000 counts/Rev

QCI-A34HC-1

Starting at $916.00

QCI-A34HC-1 Specifications

  • Continuous Torque: 675 oz-in
  • Peak Torque: 930 oz-in
  • Maximum Current: 13.7 A
  • Maximum Speed: 3000 RPM
  • Encoder Resolution: 16000 counts/Rev

QCI-A34HC-2

Starting at $1,153.00

QCI-A34HC-2 Specifications

  • Continuous Torque: 1300 oz-in
  • Peak Torque: 1650 oz-in
  • Maximum Current: 16.5 A
  • Maximum Speed: 2500 RPM
  • Encoder Resolution: 16000 counts/Rev

QCI-A34HC-3

Starting at $1,410.00

QCI-A34HC-3 Specifications

  • Continuous Torque: 1950 oz-in
  • Peak Torque: 2500 oz-in
  • Maximum Current: 16.0 A
  • Maximum Speed: 2000 RPM
  • Encoder Resolution: 16000 counts/Rev

QCI-A34HC-4

Starting at $1,688.00

QCI-A34HC-4 Specifications

  • Continuous Torque: 2550 oz-in
  • Peak Torque: 3250 oz-in
  • Maximum Current: 14.5 A
  • Maximum Speed: 1500 RPM
  • Encoder Resolution: 16000 counts/Rev
  • Compatible Controllers

Accessories - Breakout Boards

Breakout boards are a great convenience when prototyping a system as wiring is simplified. Simply plug-in the breakout board to a controller and connect any wiring via screw terminal.

QCI-BO-X1

Starting at $169.00

QCI-BO-X1 Compatible With

  • All SilverMax X-Series

QCI-BO-B

Starting at $42.50

QCI-BO-B Compatible With

  • All SilverDust D2's (Except IGB)

QCI-BO-B1

Starting at $40.50

QCI-BO-B1 Compatible With

  • All SilverDust D2's
  • SilverNugget N2-IX & N2-MX

QCI-BO-S1

Starting at $42.00

QCI-BO-S1 Compatible With

  • All SilverSterling S2’s
  • All SilverSterling S3’s, if drive enable is not required

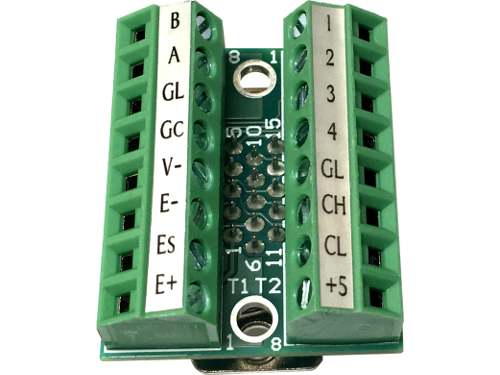

QCI-BO-S3

Contact factory for pricing

For SilverSterling S3's, the Drive Enable input allows the drive circuit to be hardware disabled

QCI-BO-S3 Compatible With

  • SilverSterling S3

QCI-BO-B1A

Starting at $64.00

Converts 0 to +3.3v PWM to 0 to +5v Analog Output on IO#2

QCI-BO-B1A Compatible With

  • All SilverDust D2’s

QCI-BO-M1

Starting at $47.75

Breakouts 15-Pin Motor Port into 5-pin motor connector and 10-pin encoder connector

QCI-BO-M1 Compatible With

  • All SilverSterling S2’s
  • All SilverDust D2’s

QCI-BO-K

Starting at $40.50

Provides onboard 120 ohm CAN termination resistor

QCI-BO-K Compatible With

  • SilverDust D2-IGK

QCI-BO-B52

Starting at $95.00

Converts 7 LVTTL IO to 5 - 24V Inputs & 2 - 24V Outputs

QCI-BO-B52 Compatible With

  • All SilverDust D2's (Except IGB)

QCI-OPTMC-24

Starting at $225.00

Convert 7 LVTTL IO to 7 - 24V Inputs or 24V Outputs

QCI-OPTMC-24 Compatible With

  • All SilverDust D2's
  • SilverNugget N2-IX and N2-MX

Accessories - Communication

QuickSilver Controls offers a USB to RS-485 communications adapter. Refer to technical document QCI-TD053 Serial Communications for more information on our communication protocol.

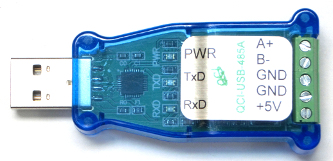

QCI-USB-RS485

Starting at $46.00

USB To RS-485 Converter

QCI-USB-RS485 Compatible With

  • All SilverMax X-Series Integrated Servos
  • All SilverDust D2 Controllers
  • All SilverSterling S2 and S3 Controllers
  • All SilverNugget N2-IX and N2-MX Controllers

Accessories - Clamp Modules

QuickSilver Controls offer clamp modules for applications where braking, aggressive deceleration, or high inertial loads are present.

QCI-CLCF-04

Starting at $175.00

QCI-CLCF-04

  • 20A Max
  • Requires External Power Resistor(s)
  • DIN Mountable

QCI-CLCF-04-R2

Starting at $192.00

QCI-CLCF-04-R2

  • 20A Max
  • Built-In 2 Ohm Power Resistor
  • DIN Mountable

Accessories - Accessories - Power Supplies

QuickSilver Controls offer single output 48V switching power supplies.

SP-240-48

Starting at $70.00

SP-240-48 Specifications

  • 48V Output
  • 240W

SE-1000-48

Starting at $259.00

SE-1000-48 Specifications

  • 48V Output
  • 1000W

RSP-1000-48

Starting at $359.00

RSP-1000-48 Specifications

  • 48V Output
  • 1000W
  • Power Factor Correction
